M:RD750

M:RD750

Our RD750 Revolve is a double revolving stage with an inner disc with a diameter of 5000mm and an outer ring that starts from 5000mm to 7500mm. Both parts can run individually

MOTOR Revolve series is built for touring life with all the little features that make it quick and easy to tour with. Our revolve stages are very suitable for theater and the musical genre, where silent and precise execution is an important feature

The Revolve stages come in sections which make it easy and quick to assemble, we have several types of flooring in stock, but we are also happy to help with special flooring.

We have also provided up to 63A in the center along with a Fiber optic data source on all stages

Our stages come with all the necessary documentation to easily tour Europe

Our entire Revolve series can all be controlled from either Kinesys Vector or Movecat Vmotion

Get in contact for more information.

Specification

Diameter disc 4997mm

Diameter ring outer 7497mm

Hight 200mm (with out floor)

Load capacity disc 1960 kilo

Load capacity ring 2450 kilo

Drive unit 2 x 0.75 kw

Speed disc (motor at 1350 rpm) – DISC 1.95 rpm (0.51m/s)

Speed ring (motor at 1350 rpm) – RING 1.89 rpm (0.74m/s)

Duty cycle S2 20min

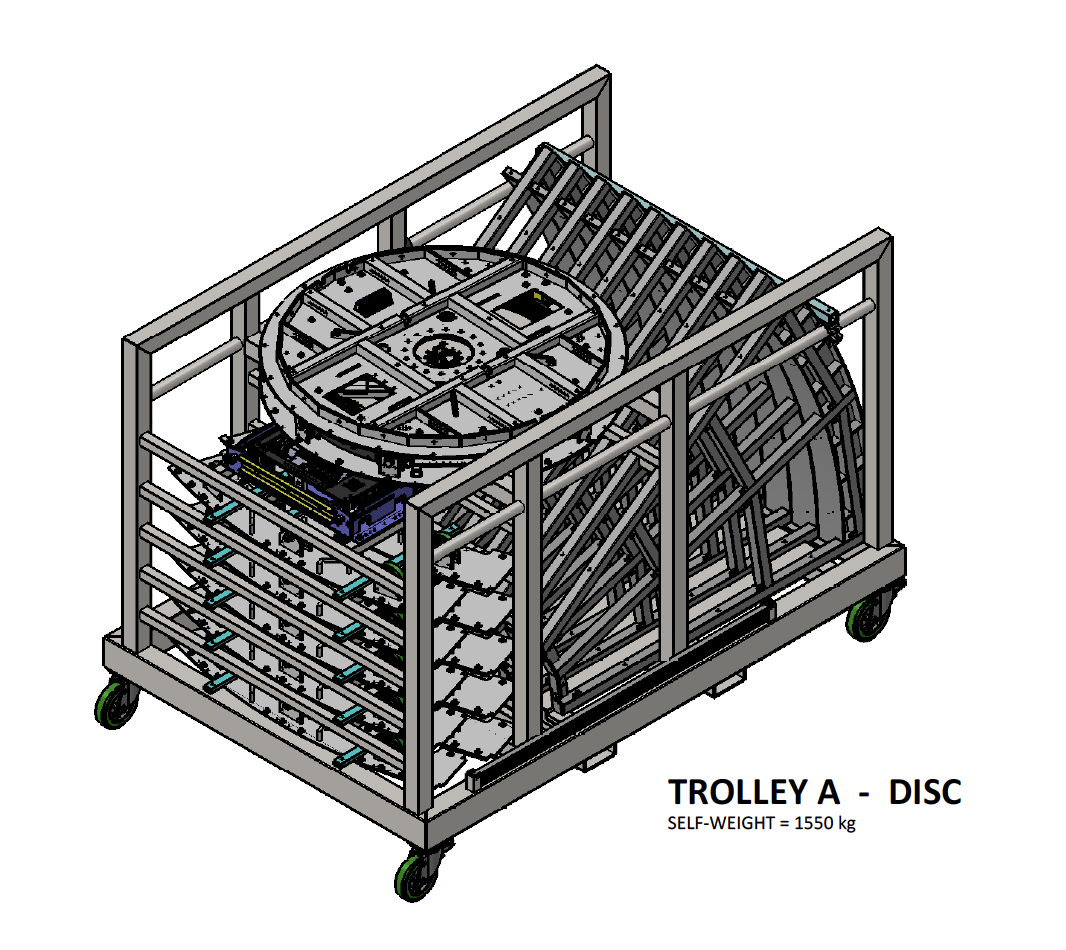

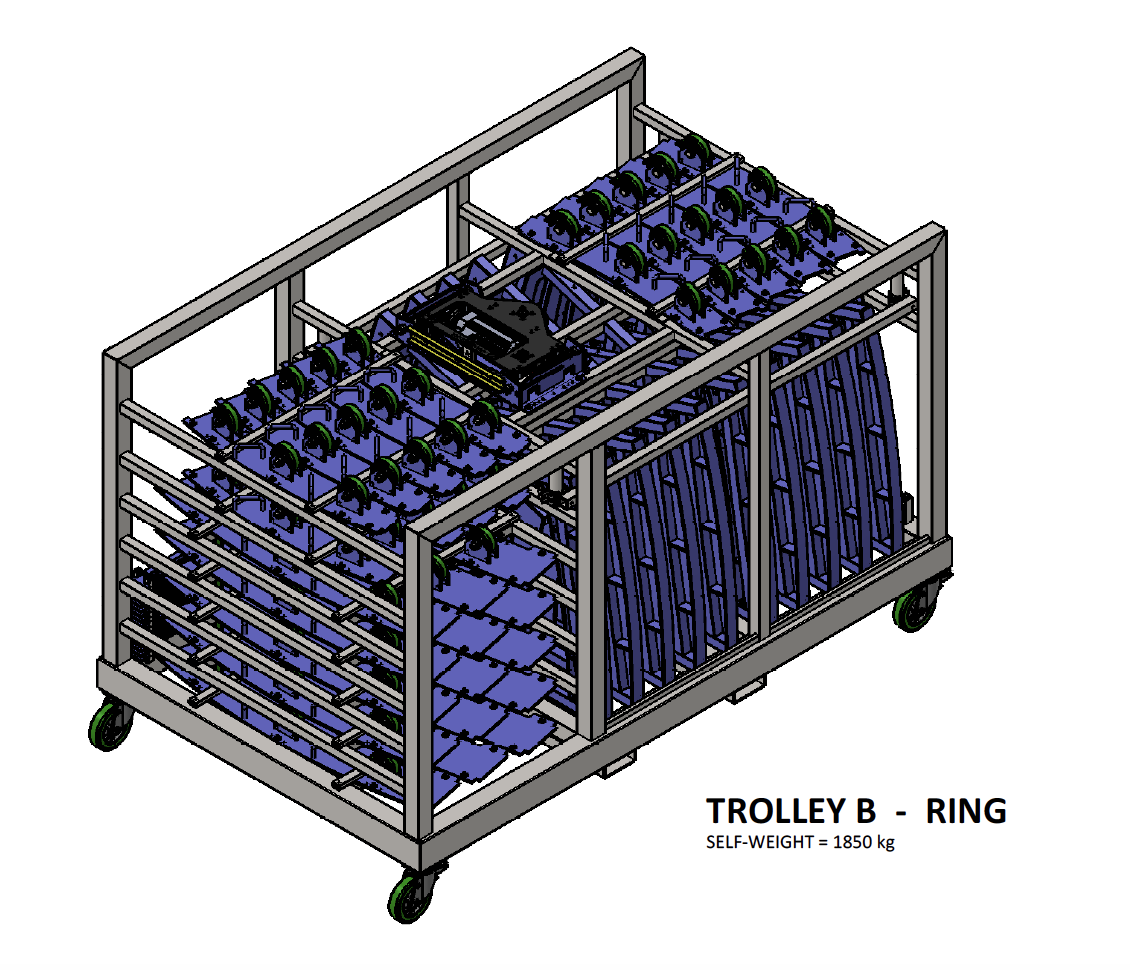

Touring Cart (2in total)

Motor placed inside the frame
