M:R330

Our MR330 “Highload” Revolve are made for the touring life, fast and easy to build whit a low hight, lownoise it is the perfect match for theater, musicals and car shows.

CONTACT US

MOTOR Revolve series is built for touring life with all the little features that make it quick and easy to tour with. Our revolve stages are very suitable for theater and the musical genre, where silent and precise execution is an important feature

The Revolve stages come in sections which make it easy and quick to assemble, we have several types of flooring in stock, but we are also happy to help with special flooring.

We have also provided up to 63A in the center along with a Fiber optic data source on all stages

Our stages come with all the necessary documentation to easily tour Europe

Our entire Revolve series can all be controlled from either Kinesys Vector or Movecat Vmotion

Get in contact for more information.

Specification

Diameter 3250mm
Height 200mm (with out floor)
Load capacity 350 kilo m2 - Disc total 3000 kilo
Drive unit 1 x 0.9 kw
Duty cycle S2 20min
Speed (motor at 1390 rpm) – DISC 3.42 rpm (0.73m/s)

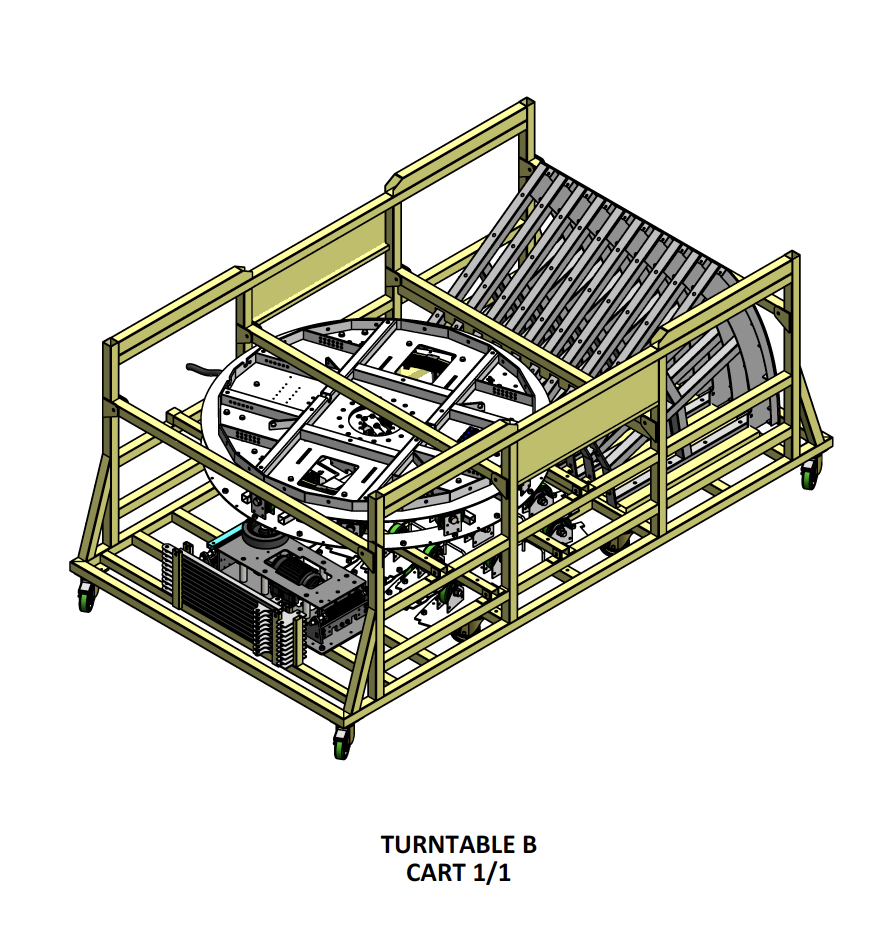

Touring Cart (1 in total)
Motor placed outside the frame

Features

63A 3fase power in center stage
Data system Fiber optic out in center stage

Control

Power need: 32A 3fase
Kinesys Elevation1+ control option
Movecat V-motion control option
