M:L 1020-S

MOTOR LIFT´s series is built for touring life with all the little features that make it quick and easy to tour with.

CONTACT US

Our lifts are very suitable for musical & live market, where silent, precise & fast execution is an important feature.

The lifts come whit prewiring from tape to top section (CAT5, DMX, POWER)

Our lifts come with all the necessary documentation to easily tour Europe, the complete range comply to EN17206:2020

Our entire lift series can all be controlled from either Kinesys Vector or Movecat Vmotion

Get in contact for more information.

Specification

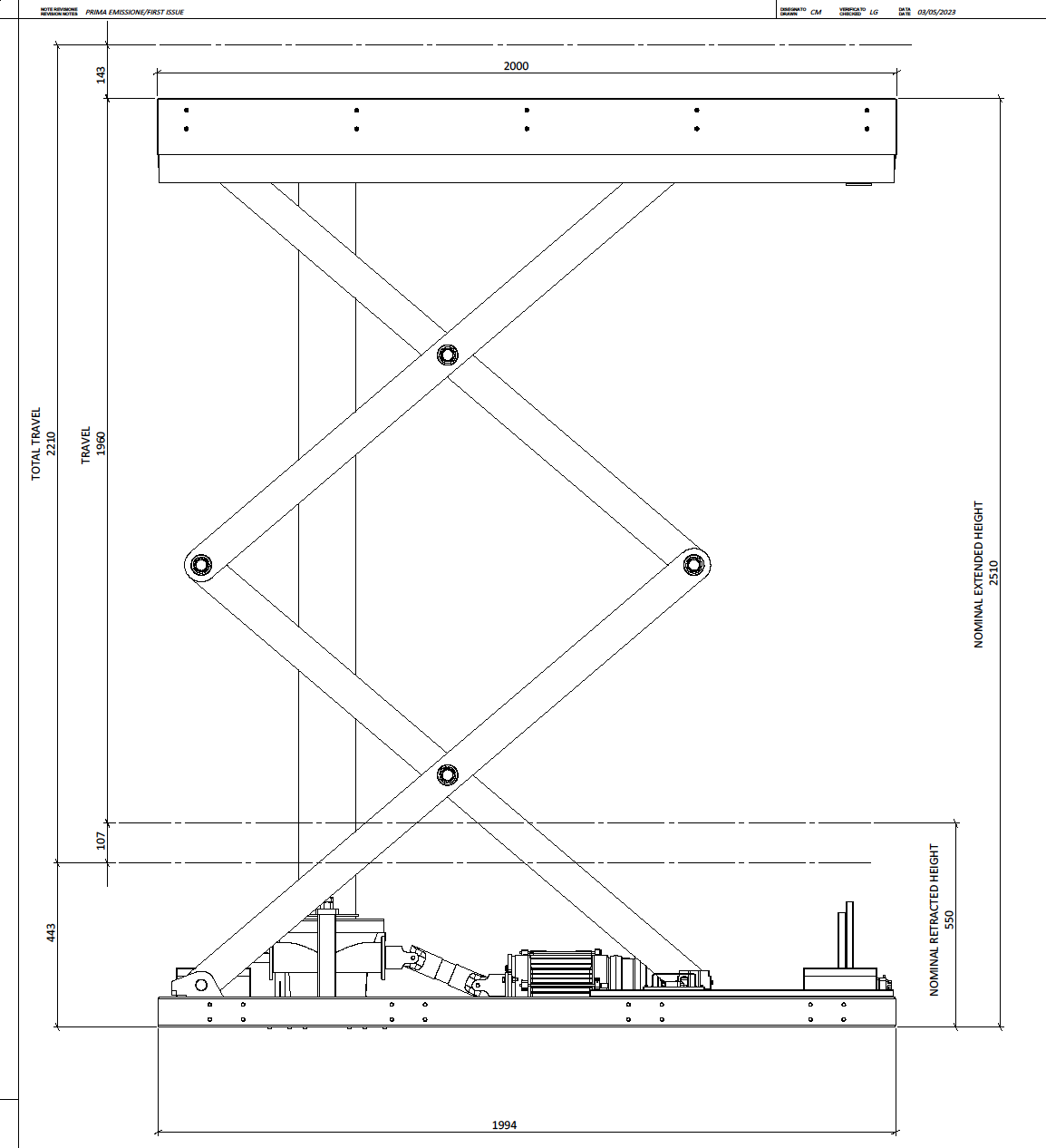

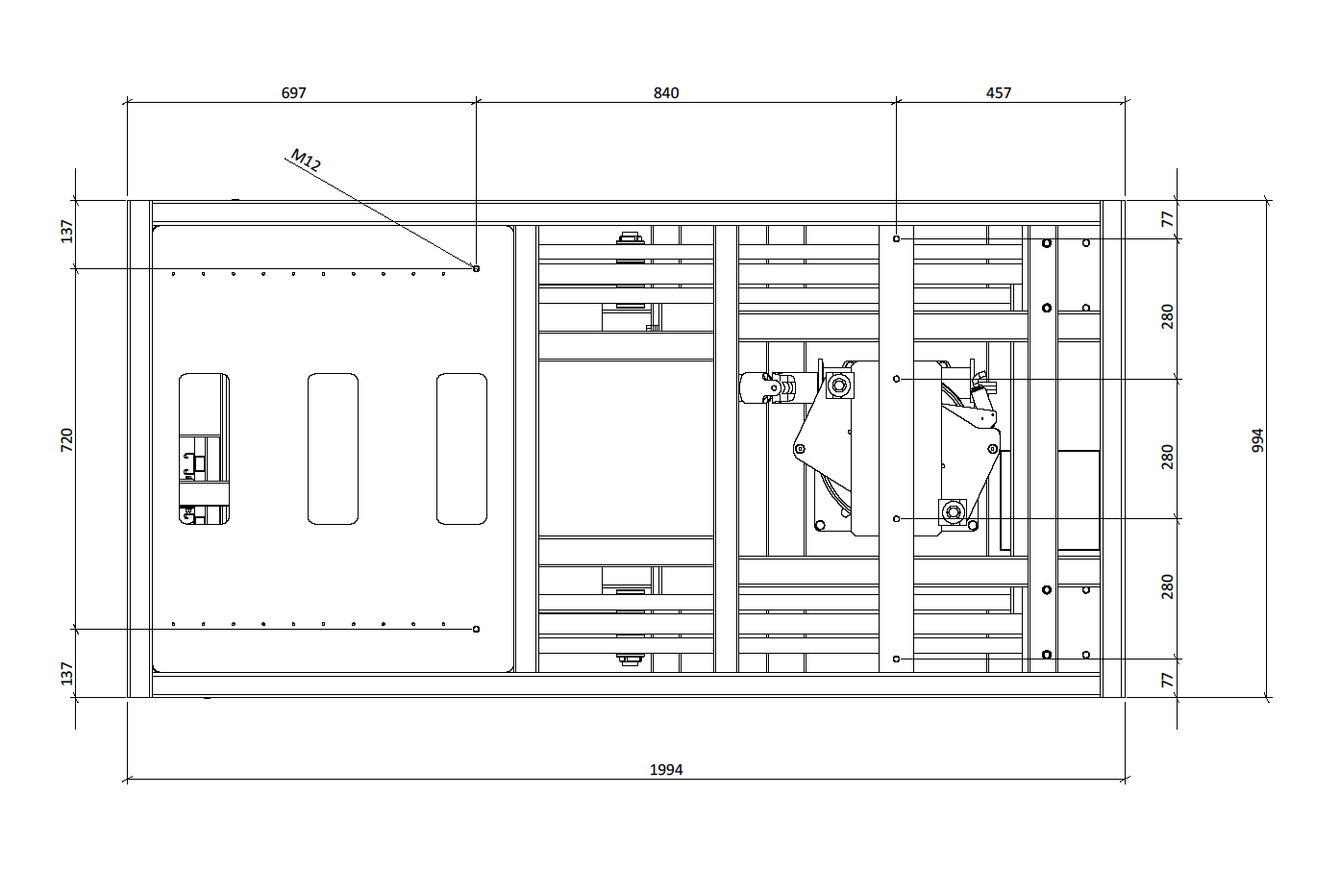

Platform 1000x2000mm
Retracked: 550mm
Extended hight: 2510mm
Steel construction
Motor size: 3 kw.

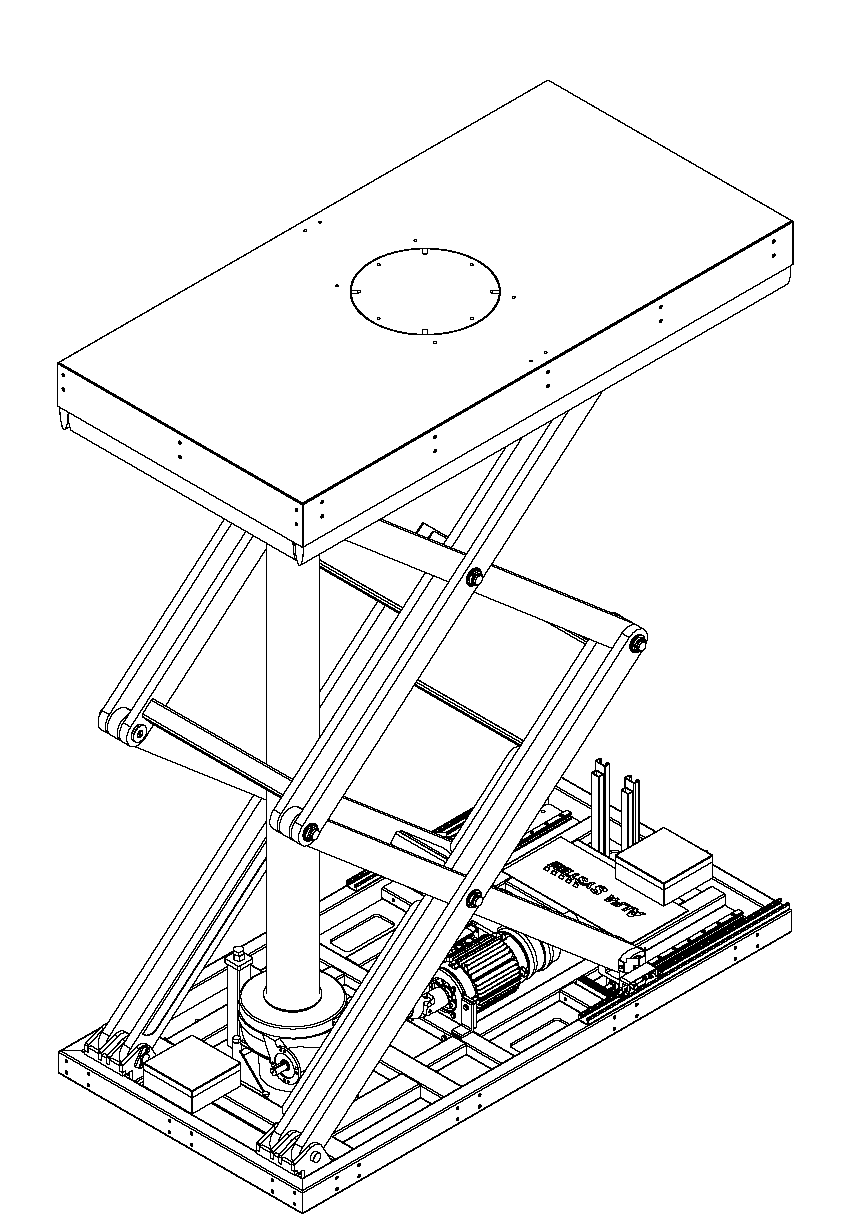

Drive: Spiral lift
Speed (motor at 1500 rpm) – 100mm/s
STATIC LAOD CAPACITY: 500 kg (250 kg/SQM)
DYNAMIC LOAD CAPACITY: 500 kg (250kg/SQM)
Comply to EN17206

Features

Change the topdack: wood or lattice grid
Wiring from bottom frame to topdeck: Cat5, DMX, Power

Control

Power need: 32A 3fase
Movecat V-motion control option – integrated C7/C8mcon
