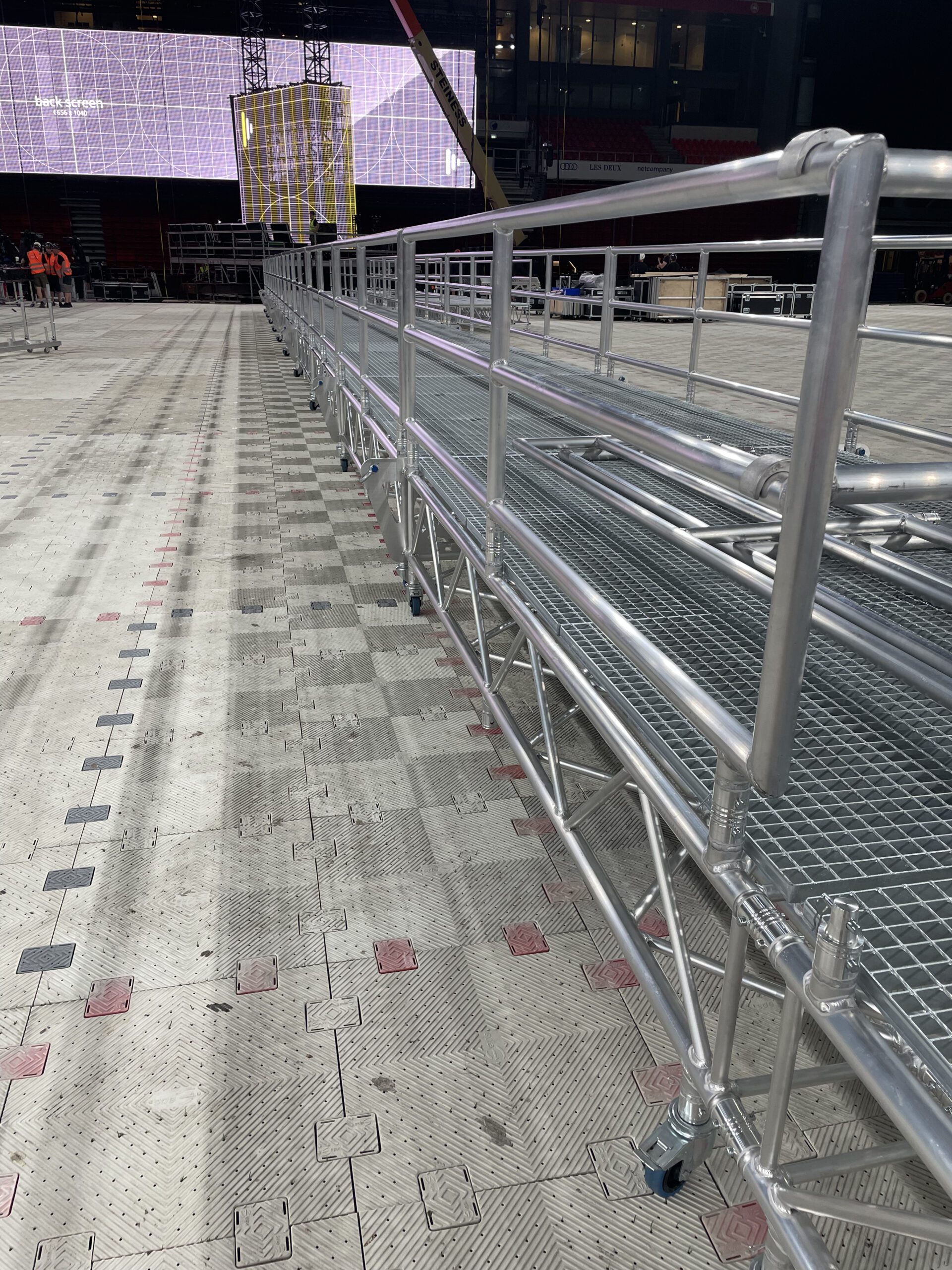

MOTOR´s M:CAT Series are a bespoke build catwalk system made for easy and fast touring


All parts are connected by pins, no need for any other tools then a hammer

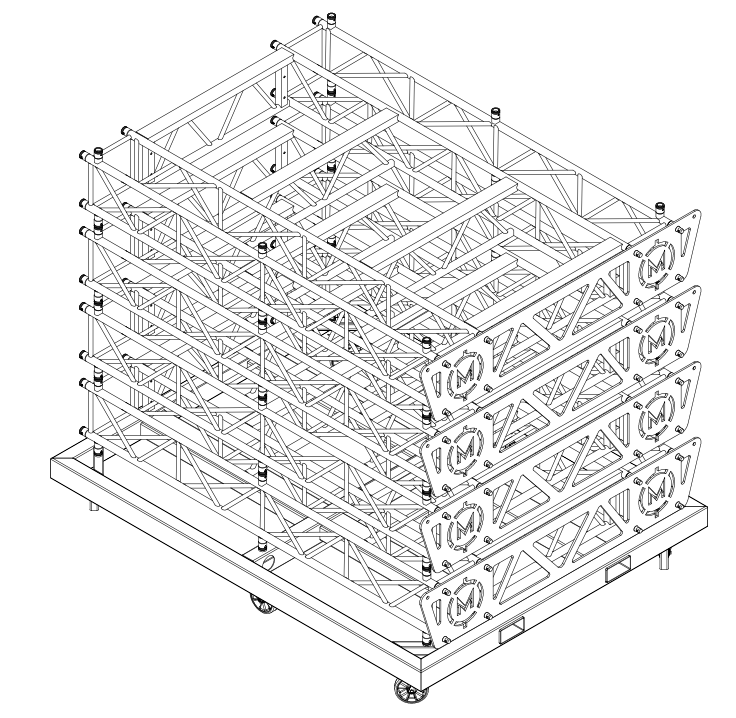

M:CAT fits onto a dolly solution that fits perfectly in a truck pack

The system consists of straight sections, and corner blocks, this is making the system very easy to adjust in length and shape on site,  to make it fit in different venues when touring.

We also have the option to make special sections, circles, triangles etc.

With our fast click wheel system, it can be built anywhere and just rolled in place when ready

Our stair system can easily be adjusted in height, or changed from hinge to fixed. Flying points can be added in every 3010mm.

Our M:CAT comes with all the necessary documentation to easily tour Europe, the complete range complies to EN17206:2020

Get in contact for more information.


Aluminium structure

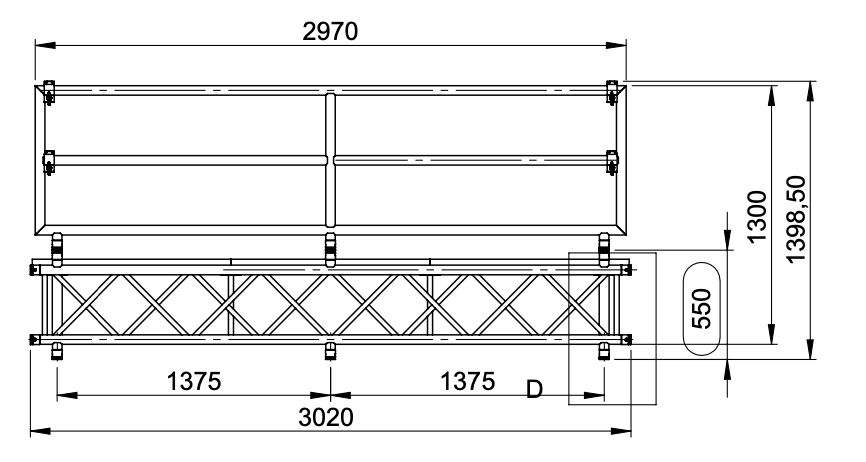

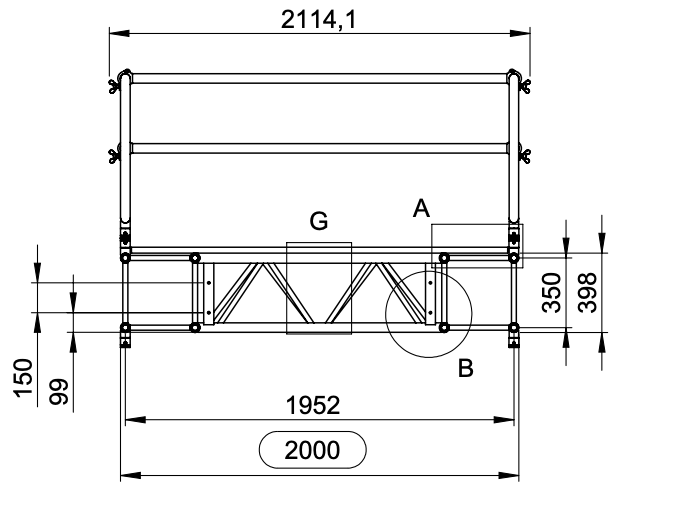

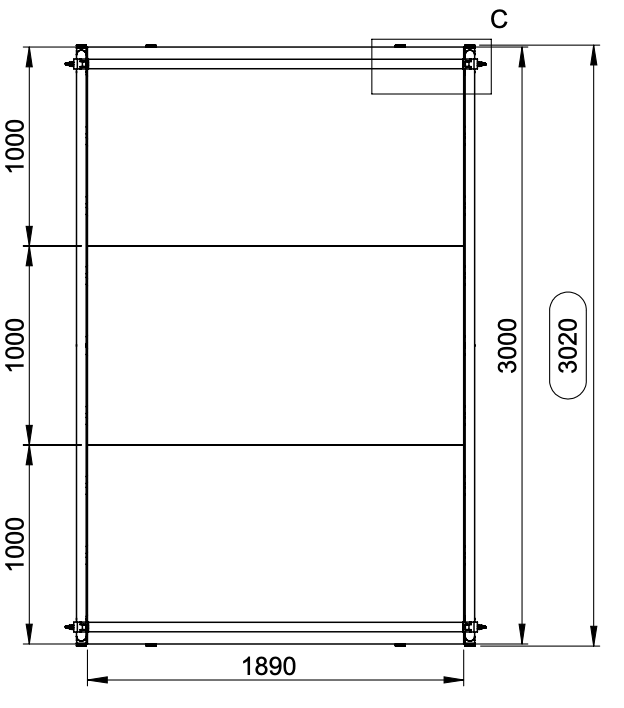

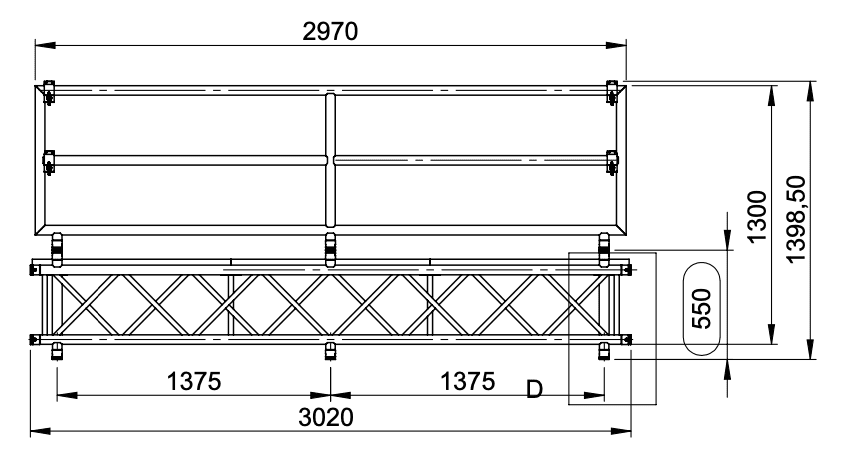

Straight section: 3010 x 2000mm (floor)
Corner section 2000x2000mm
Connecting by pins (nobolts needed)
Inbuilt fast click wheel
All needed static reports
Comply to EN17206

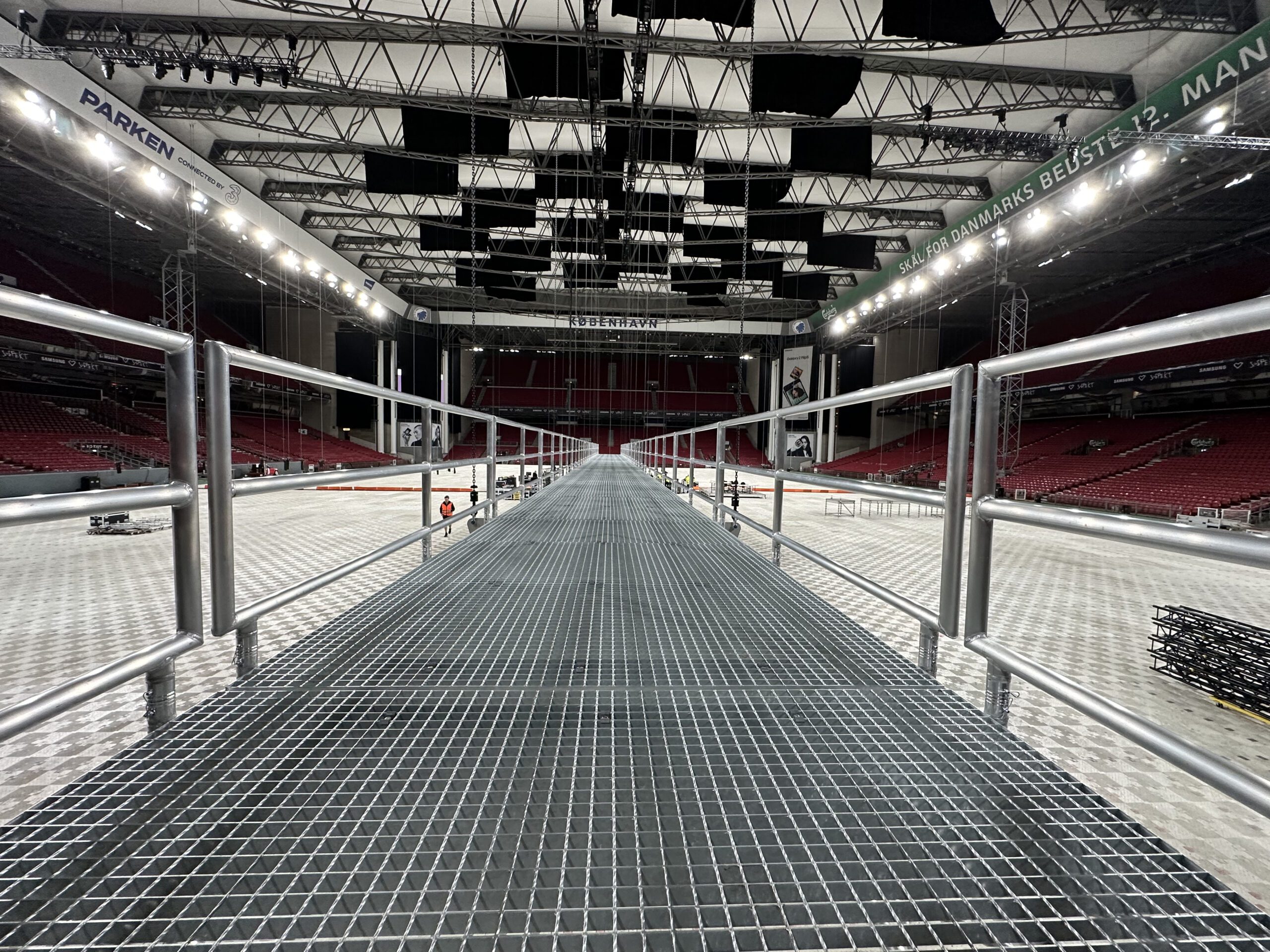

Change the topdeck: wood, lattice grid, Plexiglass.

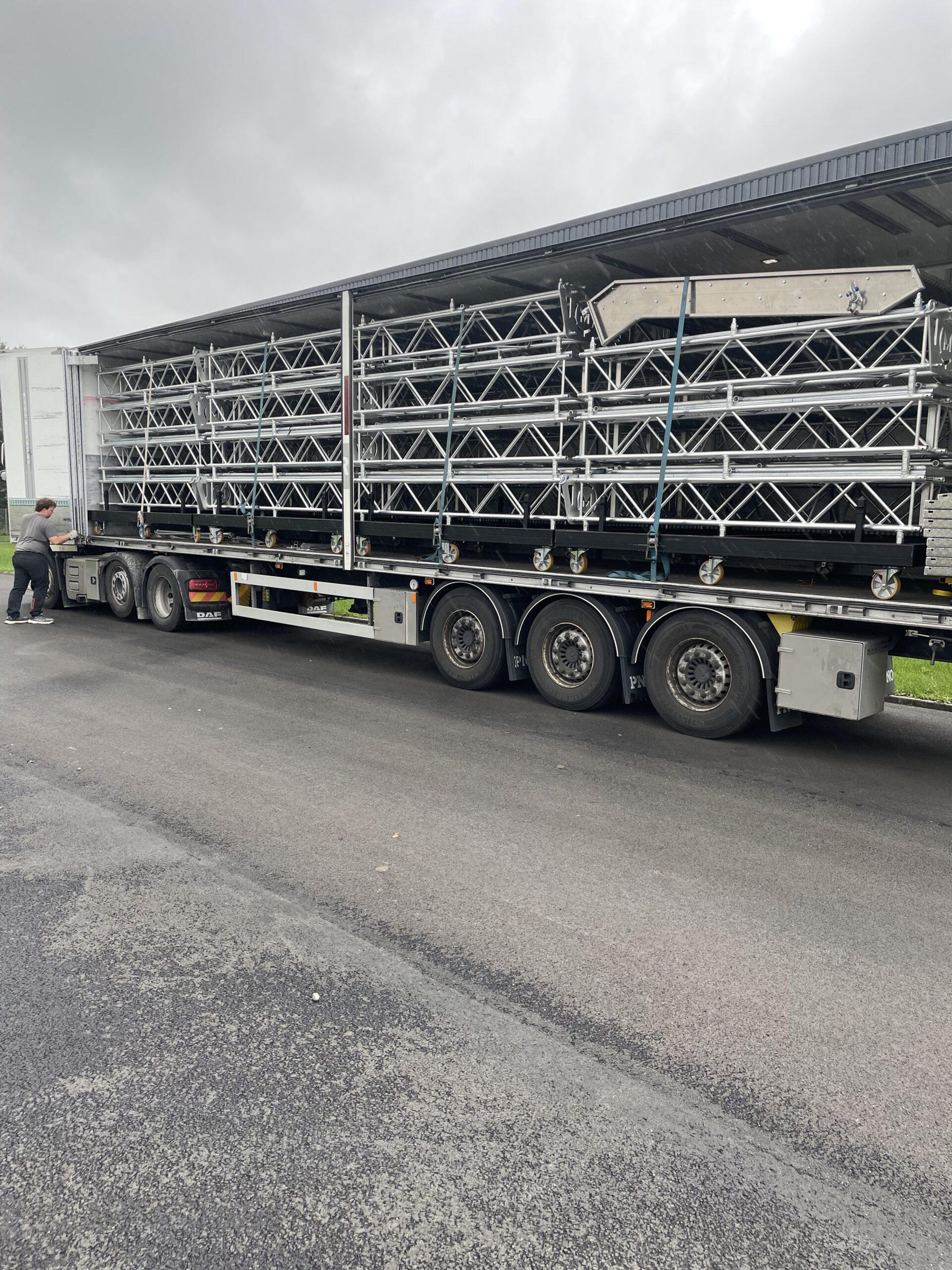

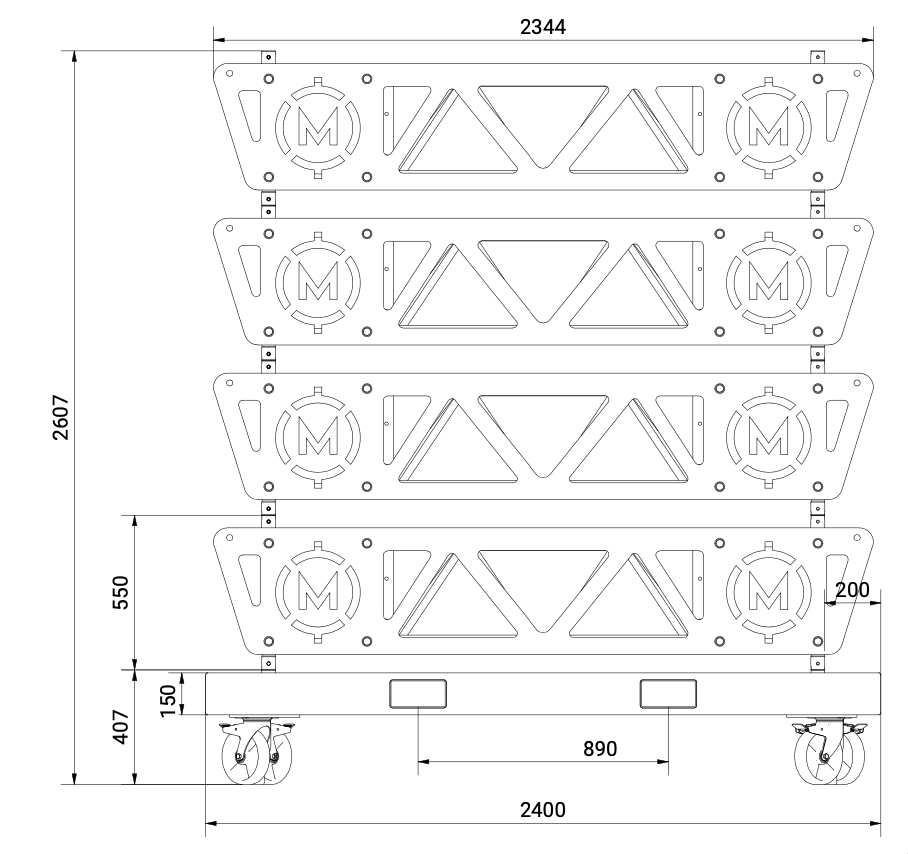

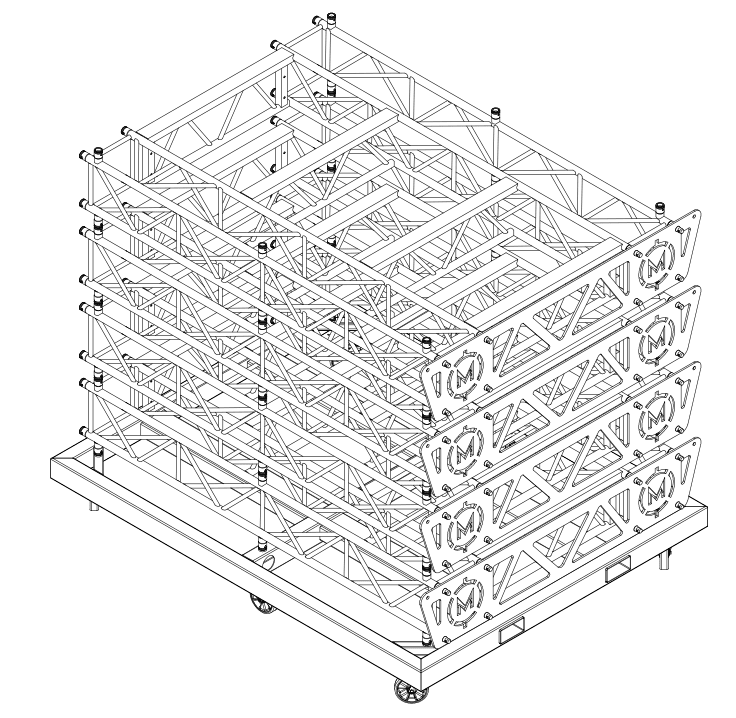

12 meter fit on one touring dolly.
The color of the structure can be as needed.
Lots of different corner, angels and more
