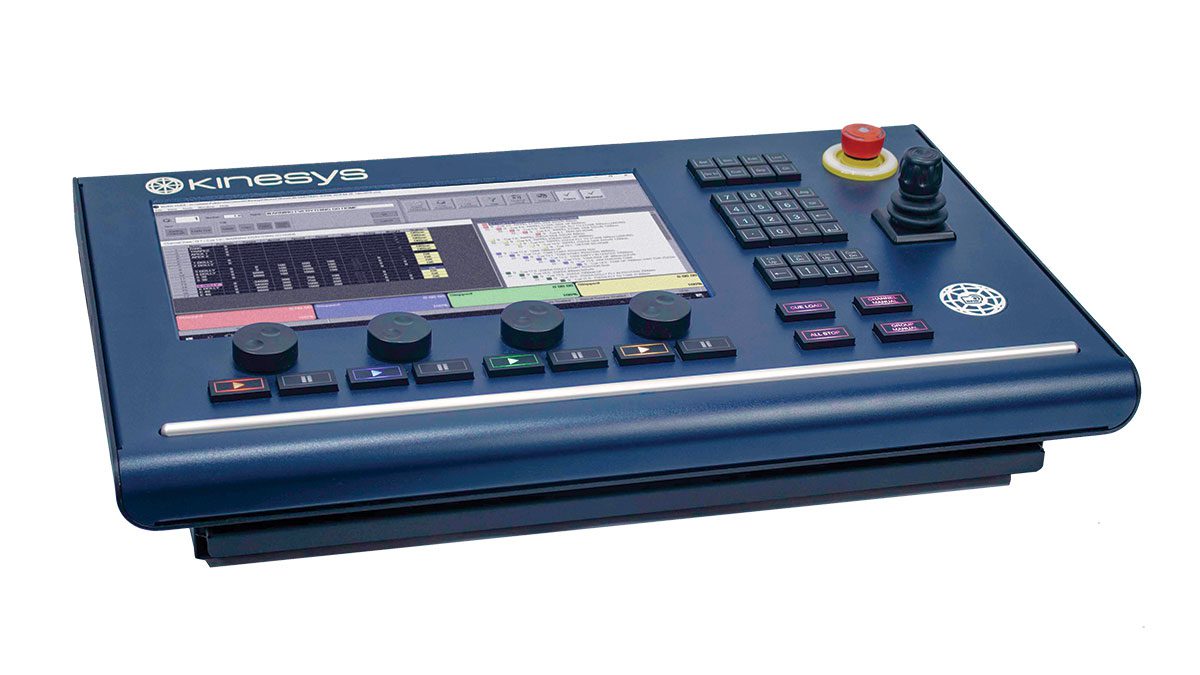

Vector Console

Vector software allows cues to be built and run with a variety of linking options. The amount of cues that can be built and channels that can be controlled are limited only by your imagination.

Creating and Editing Cues
Vector has a wealth of cue creation and editing features designed to allow rapid entry and programming of cues. Advanced linking features allow complex cue sequences to be easily constructed while maintaining maximum flexibility over the overall operation of the devices in motion. Four playbacks allow cues to be run simultaneously and manual running features make all aspects of movement easy and safe.

Vector runs on compatible Windows computers with the option of a USB keypad for faster editing and operation.

Integrates with other Kinesys products
Vector’s full integration with all Kinesys controllers also ensures that maximum feedback is available to the operator for ease of system monitoring. Comprehensive channel settings allow remote configuration of the drives and controllers in the system.

Safety and Security
Three levels of user login allow different levels of access to be granted to ensure the safety and security of the system is maintained. For more complex moves a ‘Dead Man’s Handle’ can be assigned on a channel by channel basis as well as group halt and error windowing to prevent members of a group from moving out of synchronisation.

A free demo version of Vector is available for Download. This version of the software is fully featured, but will not output any commands to carry out movement. A full Vector license can be purchased by contacting us at


500kg (1100lb) at 500mm/s (100ft/min) with 7x22mm chain, 8:1 safety factor
400kg (880lb) at 500mm/s (100ft/min) with 7x22mm chain, 10:1 safety factor
1250kg (2750lb) at 200mm/s (40ft/min) with 11x31mm chain, 10:1 safety factor
Dual silent brakes
Integral SIL3 rated loadcell
Real-time data logging of all key motion and maintenance related parameters
Full load capacity at any speed down to and including zero


1 x Multi-function Harting connector
