Array PD-ES

This 6U 19″ rack module provides 125A of emergency stop switched power through four 32A three-phase Ceeform outlets.


All three-phase outlets are protected with an adjustable RCD. A single-phase auxiliary outlet is provided along with dual XLR7 data outputs for connection to Elevation1+ controllers.

The unit includes Transform 485 functionality providing an interface between Vector or K2 and Elevation 1+.

The front panel features an integrated Emergency Stop button, status indicators, individual MCBs for each Ceeform outlet and an adjustable RCD. ‘Power Present’ status indicators are provided on both front and back panels.


Power distribution and emergency stop system contained in a 6U 19″ rack enclosure
Single-phase auxiliary outlet
4 x 32A three-phase individually switched Ceeform outlets
Adjustable RCD
Integrated Emergency Stop Button

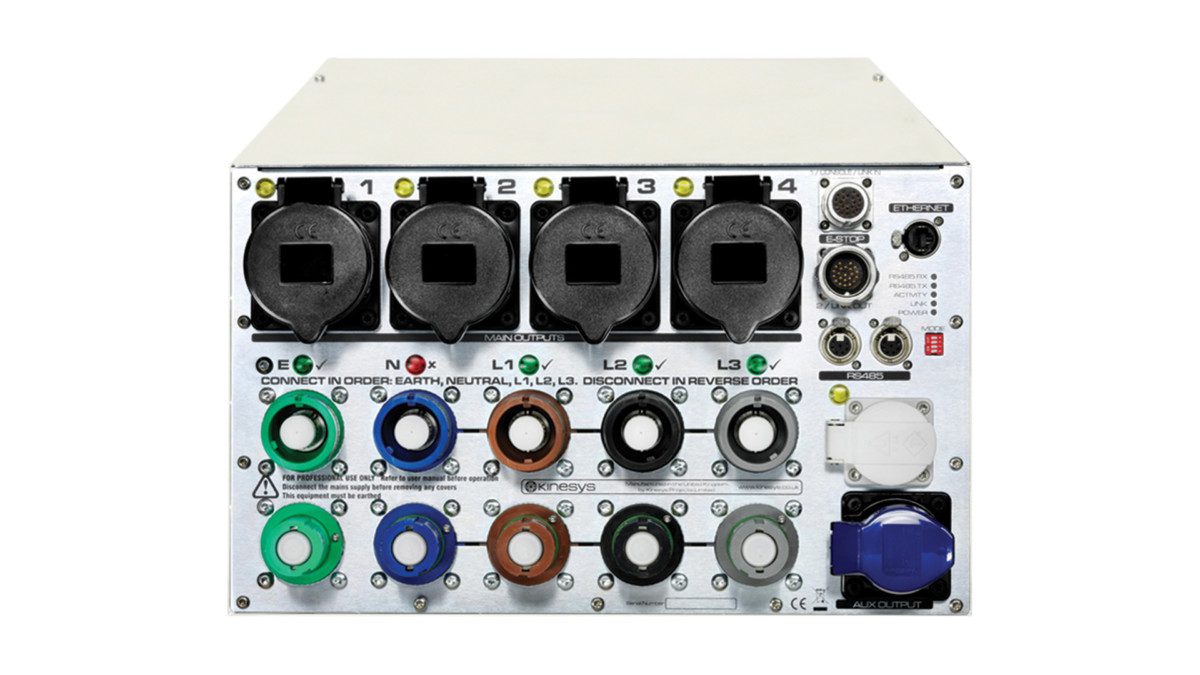

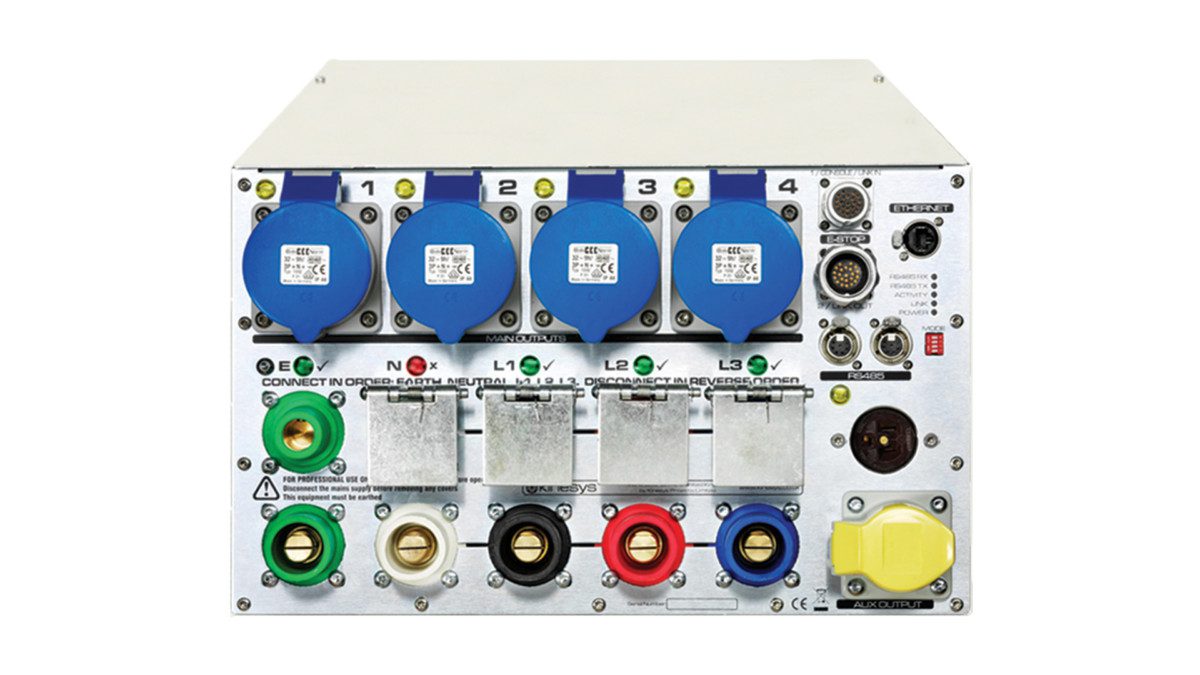

Mains Input/Output

Powerlock or CamLok E1016 type single-pole connectors with through outlets
4 x 32A “Ceeform” type IEC60309 5-pole connectors
1 X 16A “Ceeform” type IEC60309 3-pole connector
1 x outlet suitable for local territory e.g. Schuko/Edison

Control Connections

Ethercon for connection to Vector or K2
2 x XLR7 outputs
