M:L 2020-L

MOTOR LIFT´s series is built for touring life with all the little features that make it quick and easy to tour with.

CONTACT US

Our lifts are very suitable for musical & live market, where silent, precise & fast execution is an important feature.

The lifts come whit prewiring from tape to top section (CAT5, DMX, POWER)

Our lifts come with all the necessary documentation to easily tour Europe, the complete range comply to EN17206:2020

Our entire lift series can all be controlled from either Kinesys Vector or Movecat Vmotion

Get in contact for more information.



Specification

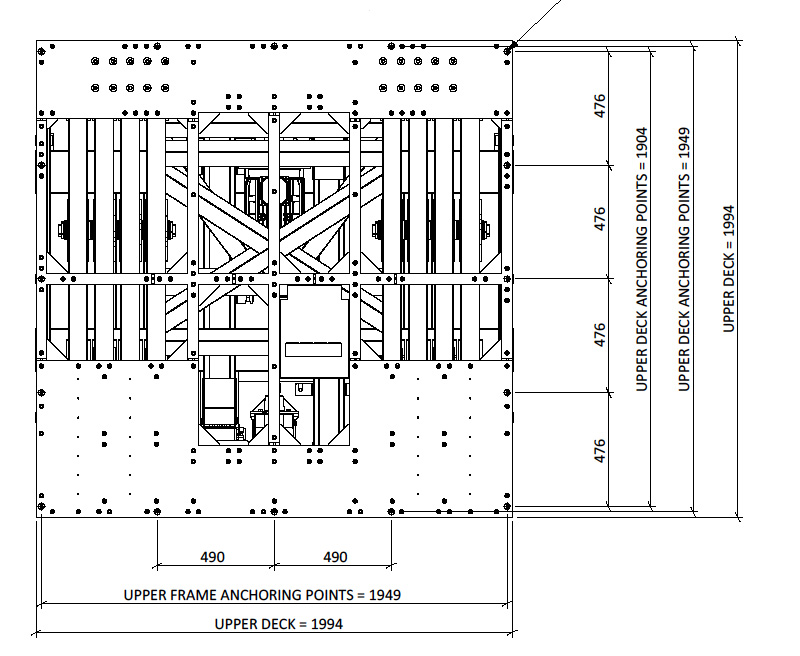

Platform 2000x2000mm
Retracked: 890mm

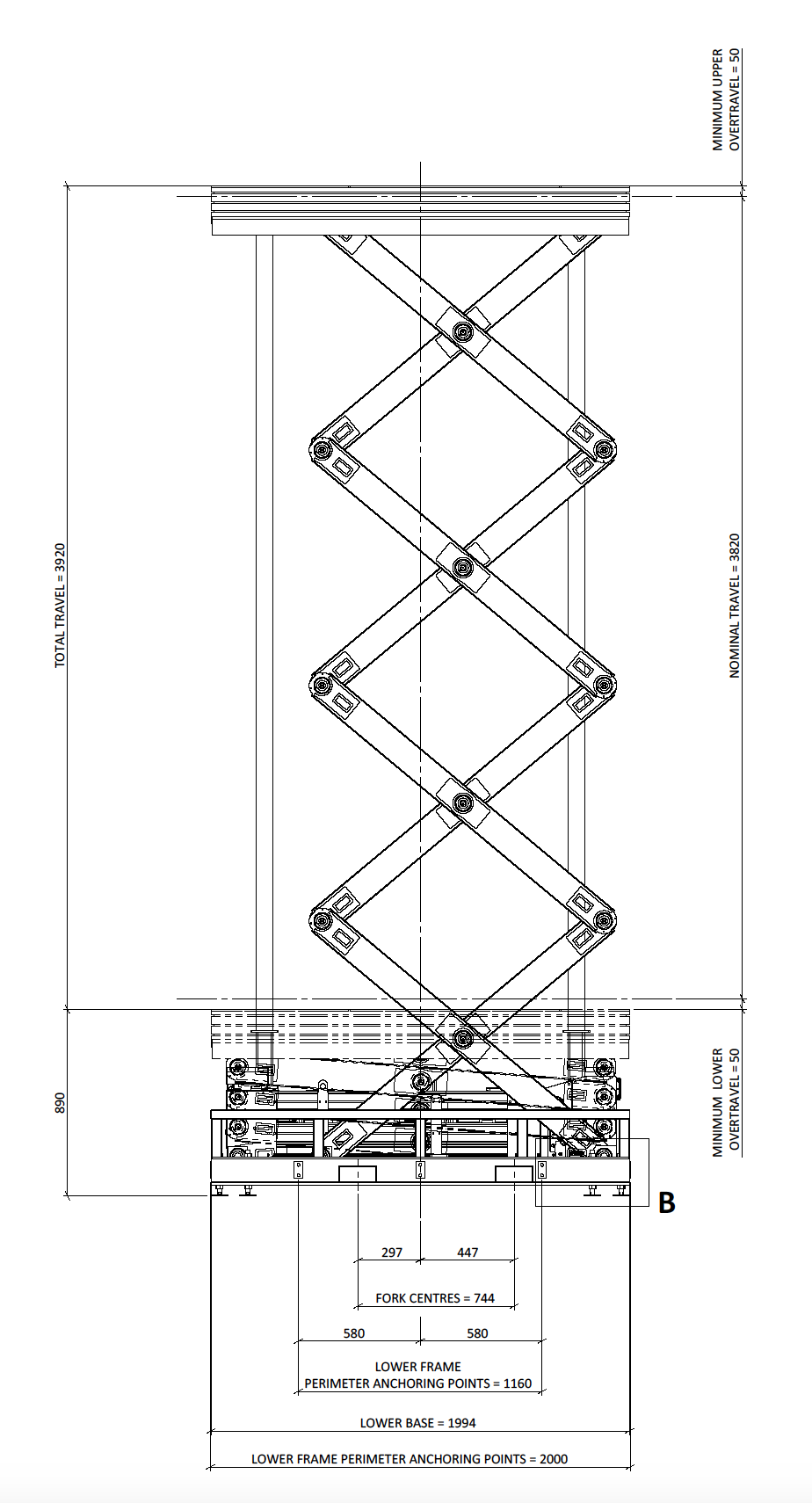

Extended hight: 4810mm
Aluminium/Steel construction
Motor size: 7.5 kw.
Drive: Link lift
Speed (motor at 1500 rpm) – 300mm/s
STATIC LOAD CAPACITY: 700 kg
DYNAMIC LOAD CAPACITY: 700 kg
Weight: 2600 kilo
Comply to EN17206
Build in Loadcell

Features

Change the topdack: wood or lattice grid
Wiring from bottom frame to topdeck: Cat5, DMX, Power

Control

Power need: 32A 3fase
Movecat V-motion control option - integrated C7/C8mcon
